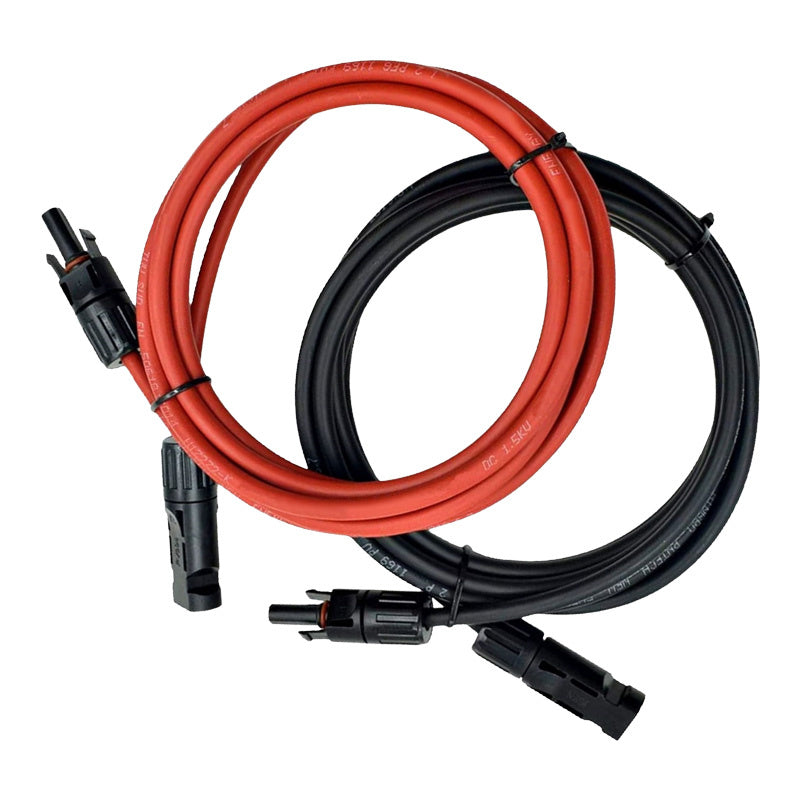

Set 2x Extension cable for solar panels MC4 2m

The set of two MC4 extension cables, each 2m long, is designed for photovoltaic applications. The single-core cables are made of multi-stranded tinned copper and offer high flexibility, and are based on halogen-free cross-linked plastic. They comply with PN-EN 50618 and PN-EN 60228 standards, providing resistance to fire, UV ultraviolet radiation, ozone and varying weather conditions.

Czerwony i czarny kabel solarny z końcówkami MC4 zwinięte w kółka na szarym tle

Durability for years

Thanks to a coating resistant to UV radiation and the influence of the external environment, the cables can be laid not only indoors and outdoors, but also directly in the ground. They are resistant to hydrolysis, ammonia, acids and alkalis, which translates into a long service life of up to 25 years. The cables remain fully functional over a wide temperature range - from -40°C to +90°C during operation with the possibility of 120°C for up to 20,000 hours.

Przekrój dwóch kabli solarnych H1Z2Z2-K pokazujący wewnętrzną strukturę z miedzianymi przewodnikami

Thoughtful design

The set based on cable type H1Z2Z2-K provides an operating voltage of 1.5 kV (1.8 kV) DC in accordance with EN 50618 and a rated voltage of 1.0/1.0 kV AC. The cables have a conductor cross-section of 6 mm² and an outer diameter of 6.2 mm. Their conductor resistance at 20°C is a maximum of 5.09 mΩ/m, and insulation is a minimum of 580 MΩ/km. MC4 connectors allow quick and safe connection to the photovoltaic installation.

Para kabli z męskimi i żeńskimi złączami MC4

Included:

MC4 cable (2 m) x2

Manufacturer	ADELID® Sp. z o.o.
Manufacturer code	XS6-2M-RED-BLACK
Cable type	H1Z2Z2-K
Cable length	2 m
Rated voltage	1,0/1,0 kV AC
Operating voltage	1.5 kV (1.8 kV) DC, according to EN 50618
Insulation resistance	approx. 1000 MΩ/km
Test voltage (50Hz)	6500 V (AC)
Rated conductor cross-section	6.00 mm²
Outer diameter of the wire	6.2 mm
Maximum diameter of a single wire in a conductor	0.31 mm
Nominal insulation wall thickness	0.7 mm
Nominal wall thickness of sheath	0.8 mm
Max. resistance of the conductor at 20°C	5.09 mΩ/m
Min. insulation resistance at 20°C	580 MΩ/km
Current carrying capacity	according to EN 50618
Resistance to ozone and atmospheric conditions	according to EN 50618
UV resistance	according to EN 50618
Resistance to fire	PN-EN 60332-1, LSOH
Expected service life	25 years
